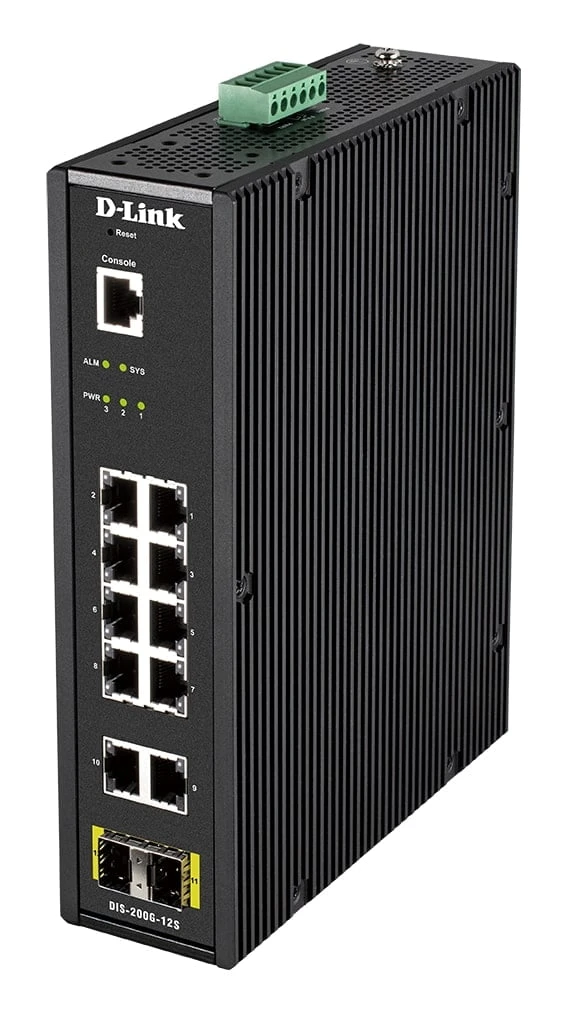

12 Port L2 Industrial Smart Managed Switch with 10 x 1GBaseT(X) Ports & 2 x SFP Ports
- Industrial Gigabit managed switch
- 10 x 100/1000BasetT auto-negotiating ports
- 2 x SFP slots
- 1 x RJ-45 console port
- 802.3af and 802.3at compliant
- 50ms recovery time for 16-node ring with <1200km circumference
- IEEE 802.1D/1w/1s spanning tree protocol, 802.3ad Link Aggregation
- Port-based VLAN, 802.1v protocol-based VLAN, Private VLAN
- Auto surveillance mode
- IGMP v1/v2/v3, IGMP snooping
- WEB-based management and SNMP v1, v2c, v3, CLI
- 48 to 54 V DC terminal block dual input, 54 V DC 4-pin DIN single power input
- Power consumption max. 10.26 W
- Multicast/broadcast/flooding storm control
- IP-30 ingress protection
- Wide operating temperature range -40°to 65°C
- Certifications: UL, CE, FCC
- Fanless design
- DIN-Rail mounting and wall mounting installation
